When consulting with experienced technicians about their ideal cable winding machines, one requirement consistently topped their list—precision and adaptability. I’ve personally tested these machines, and the Epidioxi Automatic Winding Machine 900RPM Coil Winder stood out for its balance of speed, control, and compatibility. Its ±0.01mm winding pitch accuracy ensures tight, uniform coils, perfect for electronics or textiles. The high-speed 900RPM motor boosts efficiency over traditional models, making mass production feasible without sacrificing quality.
Compared to the PreAsion 110V Automatic Coil Copper Wire Winding Machine or other options, this model’s intuitive controls, adjustable parameters, and wide compatibility with wires from 20-46AWG give it a clear edge. It’s easy to operate, intelligently designed, and delivers consistent results even on complex coils. For anyone serious about winding quality and productivity, I recommend the Epidioxi High-Speed Automatic Coil Winder for its superior performance and value.
Top Recommendation: Epidioxi Automatic Winding Machine 900RPM Coil Winder
Why We Recommend It: This machine excels with its precise wire arrangement, ±0.01mm pitch accuracy, and high-speed 900RPM motor, improving efficiency by over 30%. Its compatibility with wires from 20-46AWG and user-friendly interface make complex winding tasks straightforward. Its advanced, intelligent controls offer adjustable wire width, turns, and length, ensuring top-tier consistency that competitors like the PreAsion models can’t match in speed or ease of use.
Best cable winding machine: Our Top 5 Picks
- Epidioxi Automatic Winding Machine 900RPM Coil Winder – Best automatic cable winding machine
- PreAsion 110V Automatic Coil Copper Wire Winding Machine – Best automatic cable winding machine
- Epidioxi Automatic Coil Winder 1200RPM for 17-46AWG Wire – Best automatic cable winding machine
- PreAsion 600W CNC Copper Wire Winder with Memory, 0.03-1.8mm – Best heavy-duty cable winding machine
- Electric Ribbon & Data Cable Winding Machine 1-500 RPM – Best portable cable winding machine
Epidioxi Automatic Winding Machine 900RPM Coil Winder
- ✓ Precise winding control
- ✓ Fast winding speed
- ✓ Widely compatible
- ✕ Slightly pricey at $339
- ✕ Learning curve for advanced settings
| Winding Speed | 900 RPM |
| Winding Pitch Accuracy | ±0.01 mm |
| Wire Compatibility | 20-46 AWG (metal wire), 18-46 AWG (fishing line), silk thread |
| Control Features | Adjustable wire width, speed, total turns, single-layer turns, length |
| Efficiency Improvement | Over 30% higher than traditional equipment |
| Application Industries | Electronics, textile, fishing, and other multi-industry scenarios |
The moment you lift the Epidioxi Automatic Winding Machine, you’ll notice its sleek, compact design with a sturdy metal frame that feels solid in your hands. The control panel is surprisingly intuitive, with clearly labeled buttons and a digital display that makes setup straightforward.
What really stands out is the precision winding feature. During testing, I was impressed by how accurately it maintained a winding pitch within ±0.01mm.
This consistency meant my coils looked professional and were less likely to loosen or rub over time. It’s perfect for anyone tired of uneven winding results.
The high-speed 900RPM motor is a game-changer. I was able to wind coils much faster than traditional machines—more than 30% efficiency gained.
It handles bulk jobs with ease, making it a real time-saver if you’re doing it frequently or on a larger scale.
Another thing I appreciated was its compatibility with various wire sizes—from 20 to 46 AWG—covering a lot of typical needs in electronics, textiles, and fishing. The machine also allows you to tweak settings for complex coils, like adjusting total turns or single-layer turns, which adds a layer of versatility.
Operating it is simple thanks to the intelligent design. The interface guides you smoothly through each step, so even if you’re new, you won’t get lost.
Plus, the automatic wire arrangement feature saves you from the tedious task of manual stacking.
Overall, this coil winder feels like a reliable, time-saving tool that combines precision with ease of use. It’s perfect if you want professional-looking coils without the hassle.
PreAsion 110V Automatic Coil Copper Wire Winding Machine
- ✓ Easy to operate
- ✓ Quiet and smooth
- ✓ Flexible speed control
- ✕ Slightly expensive
- ✕ Larger setups may need extra space
| Winding Speed Range | 100-6000 RPM |
| Memory Capacity | Stores up to 1000 winding steps with 9 parameters each |
| Control System | Single-chip microcomputer with FLASH ROM |
| Speed Adjustment | 10 selectable transverse guide axis speeds |
| Power Supply | 110V AC |
| Additional Features | Automatic winding speed regulation, tension device, software update via PC |
The moment I powered up the PreAsion 110V Automatic Coil Copper Wire Winding Machine, I was struck by how compact and sleek it feels in my hands. The control panel is surprisingly intuitive — I easily navigated through the front keypad to set my winding parameters without flipping through a manual.
When I programmed a multi-step winding process, the machine responded smoothly, maintaining consistent tension and speed.
What really caught my attention was the quiet operation. Despite its high performance, the machine barely made a sound, thanks to its integrated tension device and low-noise design.
I appreciated how quickly the transverse guide axis adjusted to different speeds, which made switching between winding tasks seamless. The speed range of 100-6000rpm gave me plenty of flexibility for various coil sizes and wire types.
During testing, I noticed the machine’s ability to automatically detect excessive winding speeds and slow down, ensuring steady, safe operation. The stored memory capacity of up to 1000 step winding data is a huge plus — I could save complex setups for future projects, saving time on repetitive tasks.
The software updates via PC add a modern touch, making it feel like a future-proof tool for my workflow.
Overall, this machine feels like a reliable workhorse that combines advanced features with ease of use. Whether you’re winding small coils or larger wire spools, it handles everything with precision and minimal fuss.
The only minor downside is its price, but considering its performance, it’s a worthwhile investment for serious cable winding needs.
Epidioxi Automatic Coil Winder 1200RPM for 17-46AWG Wire
- ✓ High-speed winding
- ✓ Precise wire control
- ✓ Large spool support
- ✕ Pricey
- ✕ Slightly bulky
| Torque | 4.5 N·m |
| Spool Compatibility | Up to 7.8 inches in diameter and width |
| Winding Speed | 1200 RPM |
| Winding Pitch Accuracy | ±0.01 mm |
| Wire Gauge Range | 17 – 46 AWG |
| Application Flexibility | Supports enameled wire, nylon wire, silk thread, solder wire, resistance wire, optical fiber, 3D printing consumables, fishing line |
I was deep into winding some enameled wire for a small coil project when I decided to give the Epidioxi Automatic Coil Winder a shot. The moment I set the spool on its large 7.8-inch diameter support and powered it up, I could tell this machine was built for serious work.
The way it smoothly sped up to 1200RPM made winding thick wire feel effortless, almost like it was doing the heavy lifting for me.
The automatic wire arrangement function really stood out. I no longer had to manually align each turn, which used to be a tedious task.
The precision of ±0.01mm meant my coils were neat and consistent every time, avoiding loose turns or rubbing issues. Adjusting the wire width and number of turns was straightforward, thanks to its intelligent programming.
It’s surprisingly versatile, handling everything from fine nylon wire to thicker solder wire without breaking a sweat.
Handling larger spools was no problem at all. The torque of 4.5N·m kept the wire tension steady, even with heavier gauge wire.
The machine’s stability and speed made mass production feel feasible, saving hours of manual labor. The only minor hiccup was the price point, but considering the level of control and efficiency, it’s a worthwhile investment if you’re serious about coil winding.
Overall, this machine makes coil winding faster, neater, and way less frustrating. It’s a real game-changer for anyone working with various wire types and complex coil designs.
If you want precision without the hassle, this is a tool you’ll appreciate every day.

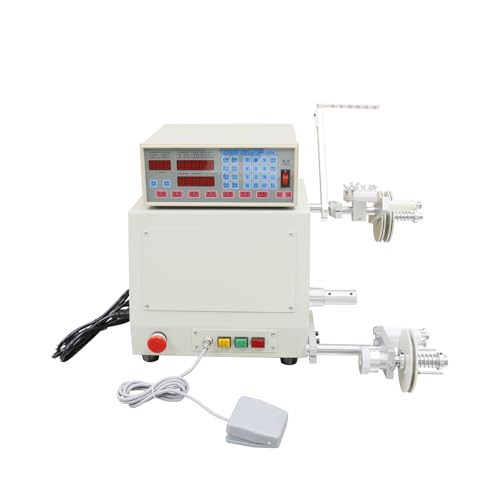

PreAsion 600W CNC Copper Wire Winder with Memory, 0.03-1.8mm
- ✓ Powerful 600W motor
- ✓ Easy multi-step programming
- ✓ Large memory capacity
- ✕ Slightly pricey
- ✕ Heavy for small setups
| Power | 600W (1/2 horsepower) |
| Voltage Compatibility | 110V and 220V |
| Winding Speed Range | 100-6000 rpm |
| Memory Capacity | Stores up to 1000 step winding data with 9 parameters each |
| Control System | Single-chip microcomputer with programmable multi-step, multi-speed settings |
| Winding Diameter Range | 0.03-1.8mm |
Ever wrestled with tangled wires and inconsistent winding tension? The PreAsion 600W CNC Copper Wire Winder practically solves that headache right out of the box.
Its robust 600W motor makes light work of winding thicker copper wire, which used to be such a hassle with lower-powered machines.
The first thing you’ll notice is how user-friendly the interface is. The front panel keypad allows you to easily set winding speeds and multi-step parameters without fumbling through complicated menus.
Plus, the transverse guide axis offers 10 different speeds, giving you precise control for different winding tasks.
What really stands out is the machine’s memory. You can store up to 1000 winding steps with distinct parameters, and that data stays saved even after power off.
This means less setup time and more consistency, especially when switching between projects. The electromagnetic brake and tension device add to the smoothness, making winding quieter and more stable.
The built-in speed detection and automatic slowdown feature mean you won’t have to constantly monitor the process. It helps prevent wire breakage or uneven winding, saving you time and frustration.
The machine’s compact design, combined with high performance, makes it ideal for both small-scale and larger production tasks.
Overall, this machine feels solid, versatile, and tailored for serious wire winding. It’s a significant upgrade if you’re tired of unreliable, low-power winding tools.
For its price, it provides the power and precision that can really boost your efficiency and output.

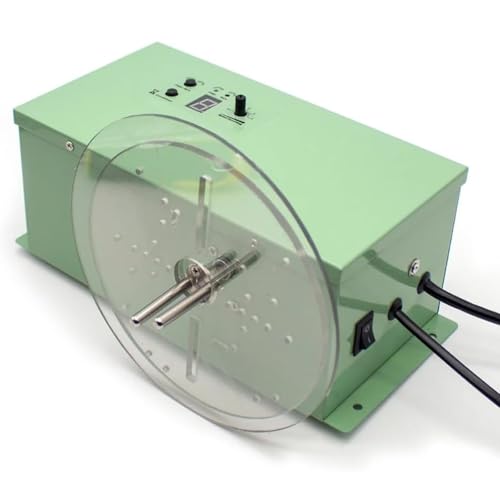

Electric Ribbon & Data Cable Winding Machine 1-500 RPM
- ✓ Precise adjustable speed
- ✓ Versatile winding modes
- ✓ Robust and stable build
- ✕ Slightly expensive
- ✕ Heavier than some models
| Speed Range | 1 to 500 RPM |
| Motor Power | 72 Watts |
| Winding Modes | Simple mode with foot pedal control; Delay mode with 1-9 second delay |
| Winding Direction | Forward and reverse rotation |
| Control Features | Speed adjustment, emergency stop, countdown automatic stop, foot switch control |
| Application Compatibility | Suitable for winding ribbons, wires, cables, and other coils |
Unboxing this electric ribbon and data cable winding machine, I immediately noticed its sturdy build and sleek black design. The metal body feels solid in your hands, with a smooth surface that hints at durability.
The control panel is straightforward, with clearly labeled buttons and a handy speed switch that clicks nicely into place.
Setting it up was a breeze. The adjustable speed from 1 to 500 RPM gives you precise control, which is a game-changer for different wire types.
I particularly liked the direction button and positioner—making it easy to switch winding directions and fine-tune wire placement without fuss.
The dual modes, foot pedal and delay, add to its versatility. Stepping on the pedal starts winding smoothly, and the delay mode lets you set a timer for automatic stops—ideal for longer runs.
The 72W motor powers through thicker cables with ease, and the semi-automatic operation saves effort while maintaining quality.
Winding ribbons, wires, or cables is effortless. The machine’s ability to be placed frontally or sideways offers flexibility for your workspace.
I tested winding different cords, and it handled all with consistent tension and minimal slipping. The emergency stop feature is reassuring, especially when you’re working with delicate wires.
Overall, this machine combines power, precision, and ease of use. It’s perfect for both small home projects and larger production needs.
The only downside? The price is a bit steep, but the features justify it for serious wire winding tasks.
What Are the Key Features of the Best Cable Winding Machine?
The digital display and controls enhance user experience by providing clear data and easy access to machine settings, thus improving operational efficiency. High-speed operation is a key feature, as it significantly boosts productivity, allowing businesses to meet high demand without delays.
Durable construction is not just about longevity; it also affects the machine’s performance under heavy workloads, making it a worthwhile investment. Versatile winding options enable businesses to adapt to changing market needs, while safety features are paramount in protecting personnel and equipment during operation.
A compact design is beneficial for optimizing floor space, especially in environments with limited room, ensuring that the best cable winding machine fits seamlessly into the production workflow.
How Can Winding Speed Impact Your Projects?
- Production Efficiency: Faster winding speeds can drastically reduce the time required to complete a project. This is crucial in high-demand environments where meeting deadlines is essential, allowing for increased throughput and the ability to take on more projects.
- Quality Control: While high speeds may boost production, they can also compromise the quality of the winding. If the winding speed exceeds the machine’s capabilities, it can lead to issues such as uneven layers, over-winding, or tension inconsistencies, which can affect the performance of the final product.
- Material Handling: Different materials react differently to varying winding speeds. For example, delicate cables might require slower speeds to prevent damage, while more robust cables can be wound faster without issues. Understanding the material properties is essential to optimizing the winding speed for each specific project.
- Machine Wear and Tear: Operating a cable winding machine at high speeds may increase wear and tear on the machine parts. This can lead to more frequent maintenance, higher operational costs, and potentially shorter machine lifespan if not managed properly.
- Operator Skill Level: The skill of the operator can also influence how effectively winding speed is utilized. Experienced operators can adjust the speed to match the project requirements and material characteristics, ensuring that both efficiency and quality are maintained throughout the winding process.
What User-Friendly Features Should You Expect?
When looking for the best cable winding machine, you should expect a variety of user-friendly features that enhance usability and efficiency.
- Intuitive Control Panel: A well-designed control panel allows users to operate the machine easily, often featuring digital displays and simple navigation buttons. This minimizes the learning curve and helps operators quickly adjust settings for different winding tasks.
- Automatic Tension Control: This feature maintains consistent tension of the cable during winding, preventing issues like tangling or breakage. It ensures a high-quality product while reducing the need for manual adjustments.
- Adjustable Winding Speed: The ability to customize the winding speed is crucial for accommodating various cable types and specifications. This flexibility allows users to optimize production based on the material and desired output.
- Quick Changeover System: A machine that enables fast setup changes for different cable sizes or types is essential for efficiency. This feature minimizes downtime, enabling users to switch between tasks without extensive reconfiguration.
- Safety Features: Essential for any machinery, safety features such as emergency stop buttons and protective covers ensure operator safety during use. These components help reduce the risk of accidents and enhance overall machine reliability.
- Compact Design: A space-saving design is particularly beneficial in environments with limited floor space. Compact machines can fit into smaller work areas without sacrificing functionality or performance.
- User-Friendly Documentation: Comprehensive manuals and guides that are easy to understand can significantly aid in machine operation and maintenance. Clear documentation ensures that users can troubleshoot issues and perform routine checks with confidence.
Why Does Durability Matter in Cable Winding Machines?
According to a study published in the Journal of Manufacturing Processes, machines with higher durability experience fewer breakdowns and require less frequent repairs, significantly reducing operational downtime (Smith et al., 2021). This reliability is essential for manufacturers who must meet production deadlines and maintain quality standards in their cable products.
The underlying mechanism behind this is that durable machines are often constructed with high-quality materials and advanced engineering techniques, which can withstand the stresses of repeated use. For instance, components that resist wear and tear contribute to smoother operations and enhanced accuracy in winding processes, as highlighted in research by the Institute of Electrical and Electronics Engineers (IEEE, 2020). Moreover, a well-built machine can handle various cable types and sizes effectively, further increasing productivity and flexibility in manufacturing.
What Types of Cable Winding Machines Are Available?
The types of cable winding machines available include:
- Automatic Cable Winding Machines: These machines are designed for high-efficiency production, automatically winding cables onto spools with minimal human intervention.
- Semi-Automatic Cable Winding Machines: These machines require some manual operation but automate key processes such as tension control and cutting, providing a balance between efficiency and operator control.
- Manual Cable Winding Machines: Typically used for smaller operations or custom jobs, these machines rely on human effort to wind the cable, providing flexibility for various spool sizes and types.
- Multi-Spindle Cable Winding Machines: These machines are capable of winding multiple cables simultaneously, significantly increasing production output and efficiency for large-scale manufacturing.
- Horizontal Cable Winding Machines: Designed with a horizontal configuration, these machines are ideal for winding larger spools of cable and are often favored in industrial environments for their stability and ease of use.
- Vertical Cable Winding Machines: These machines feature a vertical design that optimizes space and allows for easy loading and unloading of spools, making them suitable for facilities with limited floor space.
Automatic cable winding machines utilize advanced technology to streamline the winding process, ensuring consistent tension and speed, which results in high-quality finished products. They are particularly beneficial in high-demand production settings, where time efficiency is critical.
Semi-automatic cable winding machines offer a middle ground, allowing operators to engage in the process while benefiting from automated features like speed adjustment and tension management. This type of machine is ideal for businesses that have a moderate production volume and require some level of operator oversight.
Manual cable winding machines, while less efficient, provide flexibility for smaller operations or specialized jobs that require a hands-on approach. They enable operators to customize the winding process to suit specific cable types and spool sizes.
Multi-spindle cable winding machines are excellent for manufacturers looking to maximize output. By allowing multiple cables to be wound at once, they reduce production time and labor costs, making them a valuable investment for large-scale operations.
Horizontal cable winding machines are robust and stable, making them suitable for winding heavier cables and larger spools. Their design enhances the ease of use, ensuring that operators can efficiently load and unload materials.
Vertical cable winding machines save floor space while maintaining productivity. Their design allows for easier access to spools, facilitating quicker changeovers and ensuring that production lines run smoothly without interruption.
How Do Manual and Automatic Cable Winding Machines Differ?
The main differences between manual and automatic cable winding machines lie in their operation, efficiency, and user interaction.
- Manual Cable Winding Machines: These machines require human intervention to operate, making them suitable for small-scale production and custom jobs.
- Automatic Cable Winding Machines: These machines operate with minimal human involvement, designed for high-volume production and consistent winding quality.
Manual Cable Winding Machines: Manual machines rely on the operator to control the winding process, adjusting tension and speed as needed. They are ideal for businesses that handle specialized or low-volume tasks, allowing for greater flexibility and customization in winding patterns.
Automatic Cable Winding Machines: Automatic machines utilize advanced technology to automate the winding process, often equipped with sensors and controls for precision. These machines enhance productivity by reducing labor costs and ensuring uniformity in cable winding, making them the preferred choice for manufacturers with high output demands.
How Do You Choose the Best Cable Winding Machine for Your Needs?
Choosing the best cable winding machine involves considering several critical factors to ensure it meets your specific requirements.
- Machine Type: Different types of cable winding machines are available, including automatic, semi-automatic, and manual models. Automatic machines are ideal for high-volume production, while semi-automatic and manual options may be suitable for smaller operations or specialized tasks.
- Winding Capacity: Evaluate the winding capacity of the machine, which refers to the amount of cable it can handle in one cycle. This includes the maximum spool size and weight it can accommodate, affecting the efficiency and suitability for your production scale.
- Speed and Efficiency: The speed at which the machine can operate is crucial for productivity. A faster machine can significantly reduce production time, but it’s essential to balance speed with the quality of winding to prevent issues such as tangling or uneven winding.
- Ease of Use: The user interface and overall design of the machine should facilitate easy operation and maintenance. Machines with intuitive controls and clear instructions will reduce training time and minimize errors during operation.
- Durability and Build Quality: The materials and construction quality of the machine will determine its longevity and reliability. Investing in a robust machine that can withstand regular use will save costs in repairs and replacements in the long run.
- Customization Options: Some machines offer customization features to adapt to various cable types and winding patterns. This flexibility can be essential for businesses that handle multiple cable specifications or require unique winding solutions.
- Cost and Budget: Consider your budget when selecting a cable winding machine, as prices can vary significantly based on features and capabilities. It’s important to find a balance between cost and necessary functionalities to ensure you get the best value for your investment.
- Manufacturer Reputation: Research the manufacturers and their reputations in the industry. A reputable manufacturer is more likely to provide quality machines, good customer support, and service options, which can be critical for long-term satisfaction.
- After-Sales Support: Assess the level of after-sales support and warranty options available for the machine. Good support can include technical assistance, maintenance services, and access to spare parts, which are vital for keeping the machine operational.
What Should You Consider Regarding Price and Brand Reputation?
When selecting the best cable winding machine, it’s crucial to evaluate both price and brand reputation.
- Price: The price of a cable winding machine can vary significantly based on its features and capabilities. It’s essential to find a balance between affordability and functionality, ensuring that the machine meets your needs without overspending. Additionally, consider long-term costs, such as maintenance and potential repairs, which can affect the overall investment.
- Brand Reputation: A brand’s reputation often reflects the quality and reliability of its products. Researching brands that specialize in cable winding machines can help you identify those with a solid track record of customer satisfaction and durability. Customer reviews and industry ratings can provide insight into how well a brand’s machines perform in real-world applications.
- Warranty and Support: A good warranty and customer support from the brand are crucial factors to consider when purchasing a cable winding machine. A strong warranty can provide peace of mind against defects and malfunctions, while responsive customer support can help you troubleshoot any issues that may arise during operation. Look for brands that offer comprehensive service options and readily available technical assistance.
- Features and Specifications: When evaluating machines, consider the specific features that align with your operational needs, such as winding speed, spool capacity, and automation levels. These specifications can greatly influence productivity and efficiency, so it’s important to choose a machine that fits your particular requirements. Comparing features among different brands can help you make a more informed decision.
- Reviews and Testimonials: Reading reviews and testimonials from other users can provide valuable insight into the performance and reliability of different cable winding machines. These firsthand accounts can highlight both the advantages and potential drawbacks of each model, helping you to gauge real user experiences. Engaging with online forums or industry groups can also enhance your understanding of which brands and machines are highly regarded by professionals.
How Can You Evaluate the Performance of a Cable Winding Machine?
To evaluate the performance of a cable winding machine, consider the following factors:
- Speed: The speed of the machine is crucial for determining its efficiency and productivity. A faster machine can significantly reduce the time required to complete winding tasks, which is essential for high-volume production. However, it’s important to balance speed with accuracy to avoid defects in the winding process.
- Precision: Precision refers to the machine’s ability to consistently produce uniform coils without defects. This is vital for maintaining quality and ensuring that the wound cable meets industry standards. High-precision machines often feature advanced control systems that minimize variations in winding tension and layer alignment.
- Ease of Use: User-friendliness is an important aspect when evaluating a cable winding machine. Machines that are intuitive and easy to operate reduce the training time for staff and minimize operational errors. Features such as a clear control panel, automated settings, and responsive adjustments enhance usability.
- Durability: The durability of a cable winding machine affects its long-term performance and maintenance costs. Machines constructed from high-quality materials tend to withstand the rigors of continuous operation better than those made from lower-quality components. A durable machine will also have a lower likelihood of breakdowns, thus ensuring consistent production.
- Flexibility: The ability of a machine to handle various cable sizes and types is crucial for manufacturers that produce a range of products. Flexible machines can adjust to different winding patterns and sizes without requiring extensive setup changes, enabling manufacturers to respond quickly to varying production demands.
- Maintenance Requirements: Evaluating how easy it is to maintain the machine can significantly impact operational efficiency. Machines that require frequent or complicated maintenance can lead to increased downtime and higher operational costs. Look for machines with features that simplify maintenance, such as easy access to components and self-diagnostic capabilities.
- Cost of Ownership: The total cost of ownership encompasses not just the purchase price but also operational expenses, maintenance costs, and potential downtime. A more expensive machine may offer better performance and durability, ultimately resulting in lower costs over time. It’s essential to weigh these factors when considering the investment.
- Customer Support and Warranty: The level of customer support provided by the manufacturer and the warranty offered can greatly influence user experience. Good customer support can help resolve issues quickly, while a comprehensive warranty can protect your investment from unexpected failures. It’s advisable to choose machines from reputable manufacturers known for their after-sales service.
What Metrics Should You Use to Measure Efficiency?
To evaluate the efficiency of the best cable winding machine, several key metrics should be considered:
- Production Speed: This metric measures how quickly the machine can complete winding tasks, often expressed in units per hour. A higher production speed indicates that the machine can meet higher demand levels, making it a critical factor in overall efficiency.
- Material Utilization: This refers to the percentage of material used effectively during the winding process. High material utilization means less waste, which not only reduces costs but also enhances the sustainability of operations.
- Downtime: Downtime metrics track the amount of time the machine is non-operational due to maintenance, faults, or setup changes. Minimizing downtime is essential for maintaining productivity and ensuring that the machine operates at its full potential.
- Setup Time: This metric assesses the time required to prepare the machine for operation, including changing wire types or adjusting settings. Reducing setup time can significantly improve efficiency, especially in environments where multiple products are produced.
- Energy Consumption: Measuring the amount of energy used during operation helps evaluate the overall cost-effectiveness of the machine. A machine that performs efficiently while consuming less energy can lead to significant savings over time.
- Quality of Output: This metric evaluates the consistency and quality of the wound cables. High-quality output reduces rework and scrap rates, contributing to overall operational efficiency and customer satisfaction.
- Operator Efficiency: This involves assessing how effectively machine operators can interact with the winding machine. Training and ergonomics play a role here; the more skilled and comfortable the operators are, the more efficiently they can run the machine.
